3.6kW Hybrid Solar Energy Storage System, 8kWh | MK-10000

Description

3.6kW Hybrid Inverter with 8kWh Battery Storage

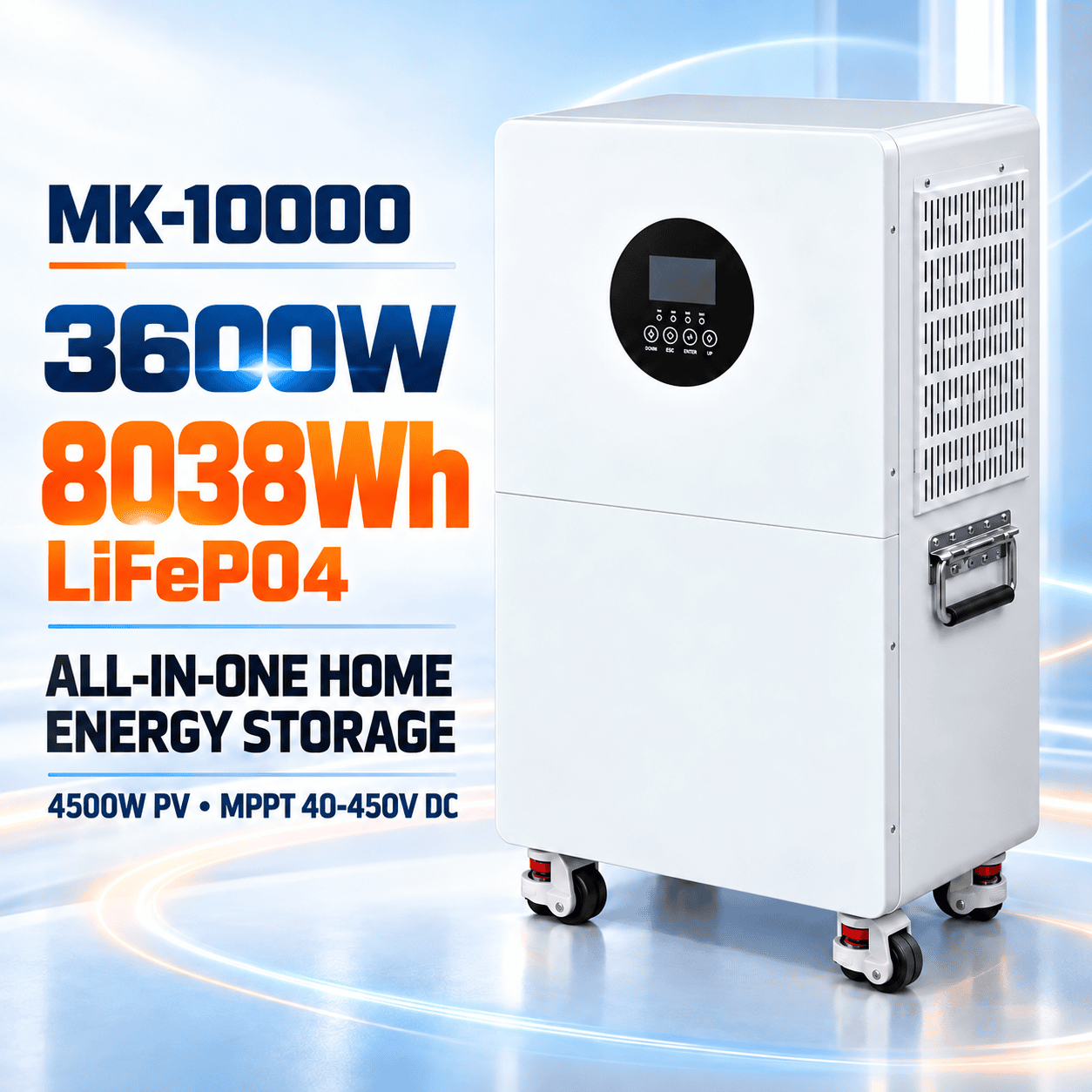

The Fortune Vast MK-10000 is a residential hybrid solar energy storage system combining a 3600W inverter, approximately 8kWh of battery storage and MPPT solar charging functionality.

Compared with lower-capacity models using the same inverter class, the MK-10000 provides more stored energy for applications that require longer backup duration. Its 220V/230V configuration is intended for compatible residential and off-grid electrical systems.

Approximately 8kWh of Nominal Energy Storage

The listed battery configuration is 25.6V and 314Ah, producing approximately 8038Wh of nominal battery energy.

This larger battery capacity may provide longer operating time for suitable household loads. However, battery capacity does not determine the maximum appliance power that can be connected.

• 3600W is the listed inverter power.
• 8038Wh is the listed nominal stored energy.
• Actual usable capacity will be lower than the nominal value.
• Runtime depends on load, efficiency, discharge limits and operating conditions.

The battery chemistry, usable depth of discharge, cycle-life rating and warranty should be confirmed before publication or quotation.

High-Voltage MPPT Solar Charging

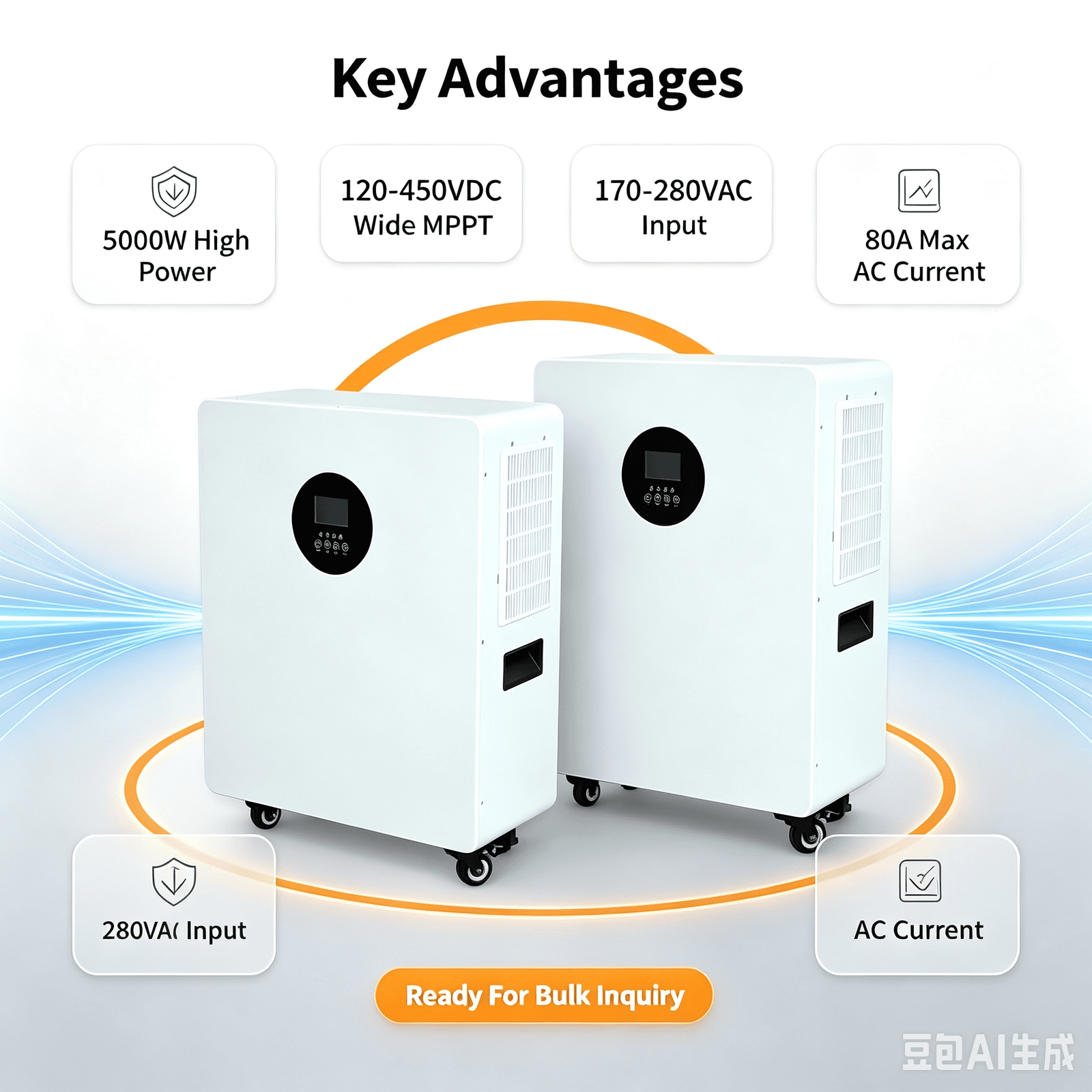

The MK-10000 lists an MPPT operating voltage range of 120–450VDC and maximum PV array power of 5500W.

This configuration can support a series-connected solar array when the number and specifications of the panels are correctly calculated. Panel wattage alone is not sufficient for designing a safe PV string.

Before connecting solar panels, confirm:

• Panel open-circuit voltage—Voc.
• Panel maximum-power voltage—Vmp.
• Array current.
• MPPT maximum input current.
• Absolute maximum PV input voltage.
• Number of MPPT trackers.
• Temperature-corrected string voltage.
• Required DC protection and isolation equipment.

The array voltage must remain within the permitted inverter limits under all expected weather conditions.

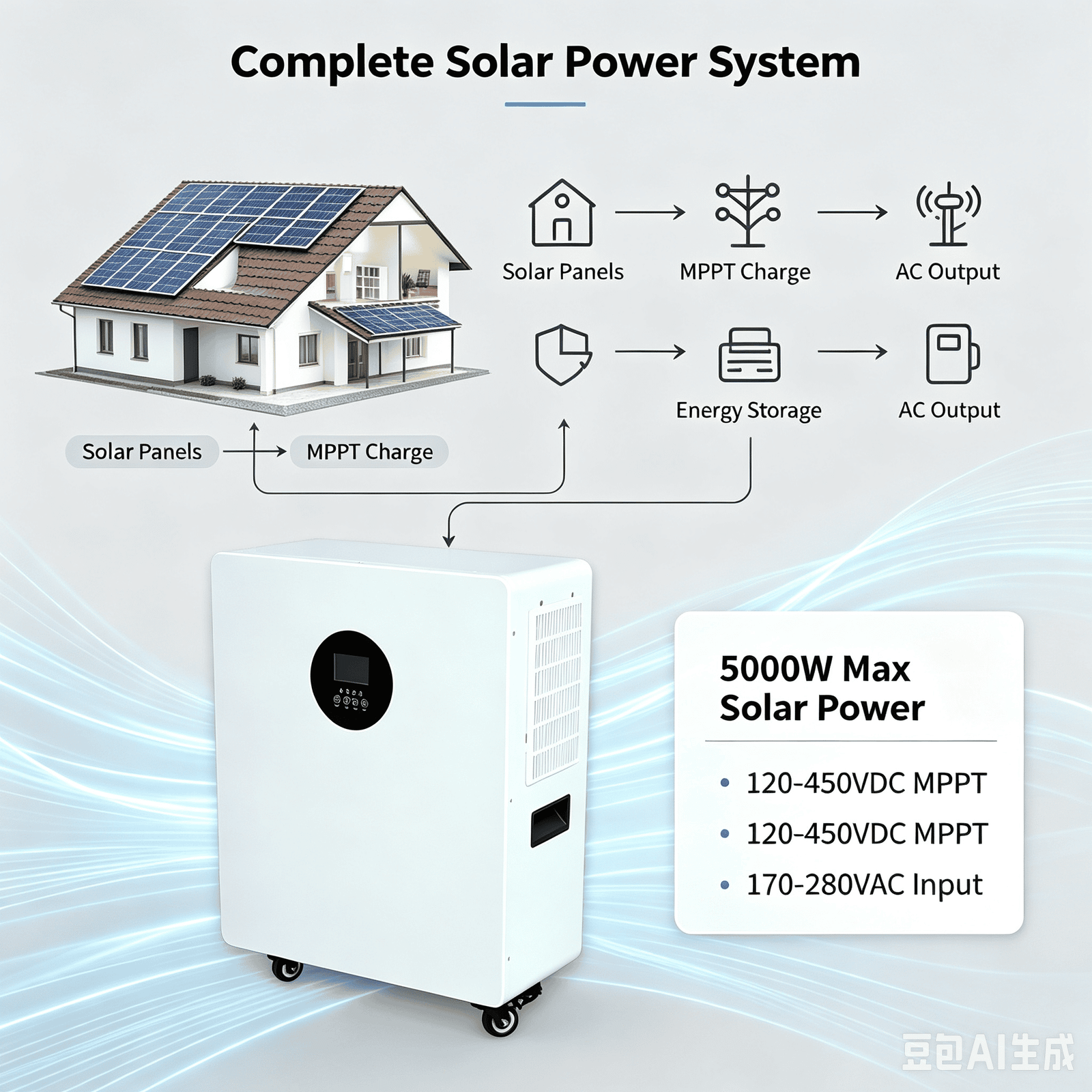

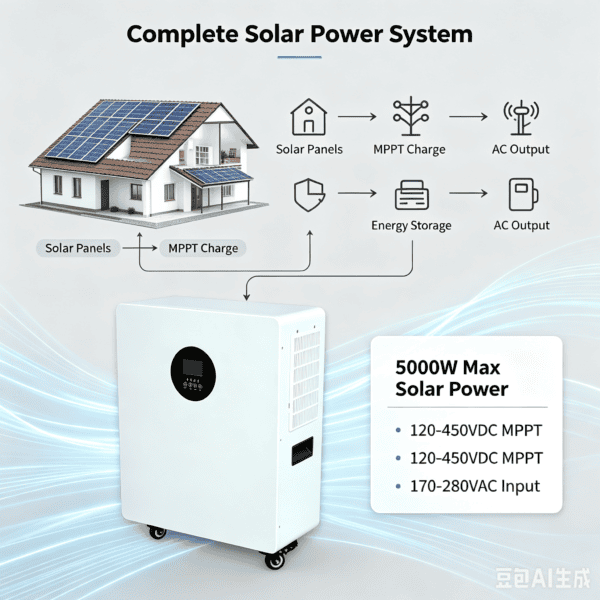

220V/230V Hybrid Energy Management

The system is listed for 220V/230V AC applications. The hybrid inverter may coordinate energy from supported solar, battery and AC sources according to the selected configuration and operating mode.

Before ordering, confirm whether the required version supports:

• Solar charging.
• Grid or AC battery charging.
• Backup or EPS output.
• Charging-source priority settings.
• Automatic source switching.
• Grid export or zero-export operation.
• Generator input.
• Remote monitoring and communication.
• Programmable battery discharge settings.

These functions should be verified in the final specification and should not be assumed only from the term “hybrid inverter.”

Suitable Applications

Subject to final electrical and load confirmation, the MK-10000 may be considered for:

• Residential backup power.
• Solar self-consumption systems.
• Off-grid homes and cabins.
• Lighting and communication equipment.
• Office and security systems.
• Compatible refrigerators and household appliances.
• Longer-duration backup than lower-capacity models.
• Distributor and solar-system integration projects.

Loads with motors, pumps or compressors may require significantly more startup power than their normal rated consumption.

Preliminary Specifications

Runtime Considerations

A simplified runtime estimate is:

Estimated runtime ≈ usable battery energy ÷ connected load

For example, the full 8038Wh nominal value should not be treated as completely usable AC output energy. Conversion losses, battery protection settings, reserve capacity and environmental conditions must be considered.

For accurate selection, provide the expected appliance power and required backup duration before ordering.

Installation Considerations

The MK-10000 is a stationary or movable cabinet-style energy storage system rather than a hand-carried portable power station. At approximately 90kg, installation and transportation should be planned in advance.

Installation should consider:

• Ventilation and operating clearances.
• Floor loading and cabinet access.
• Battery and PV disconnects.
• Cable size and protective devices.
• Earthing and surge protection.
• Indoor or outdoor installation rating.
• Local electrical and grid requirements.

Installation should be completed by appropriately qualified personnel using the wiring diagram and technical manual supplied for the selected configuration.

Wholesale and Customization Enquiries

For an accurate quotation, please provide:

• Required quantity.
• Destination country.
• Required voltage and frequency.
• Maximum household load.
• Expected backup duration.
• Solar panel model and string arrangement.
• Required inverter operating mode.
• Communication or monitoring requirements.
• Branding and packaging requirements.

We will confirm the applicable configuration, accessories, package contents and model-specific compliance documents before quotation.
