Description
• Continuous Rated Power: 7000W True Pure Sine Wave (Surge Peak: 14,000W | THD < 3%)
• Efficiency & Architecture: Up to 98% High Conversion Efficiency | Integrated MPPT Solar Controller + AC Utility Grid Bypass (UPS Mode)
• DC Battery Voltage Compatibility: 24V / 48V / 60V / 72V DC Battery Banks (LiFePO4, Ternary Lithium & Lead-Acid)
• AC Output: 220V/230V 50Hz (110V/120V 60Hz available for OEM bulk orders)

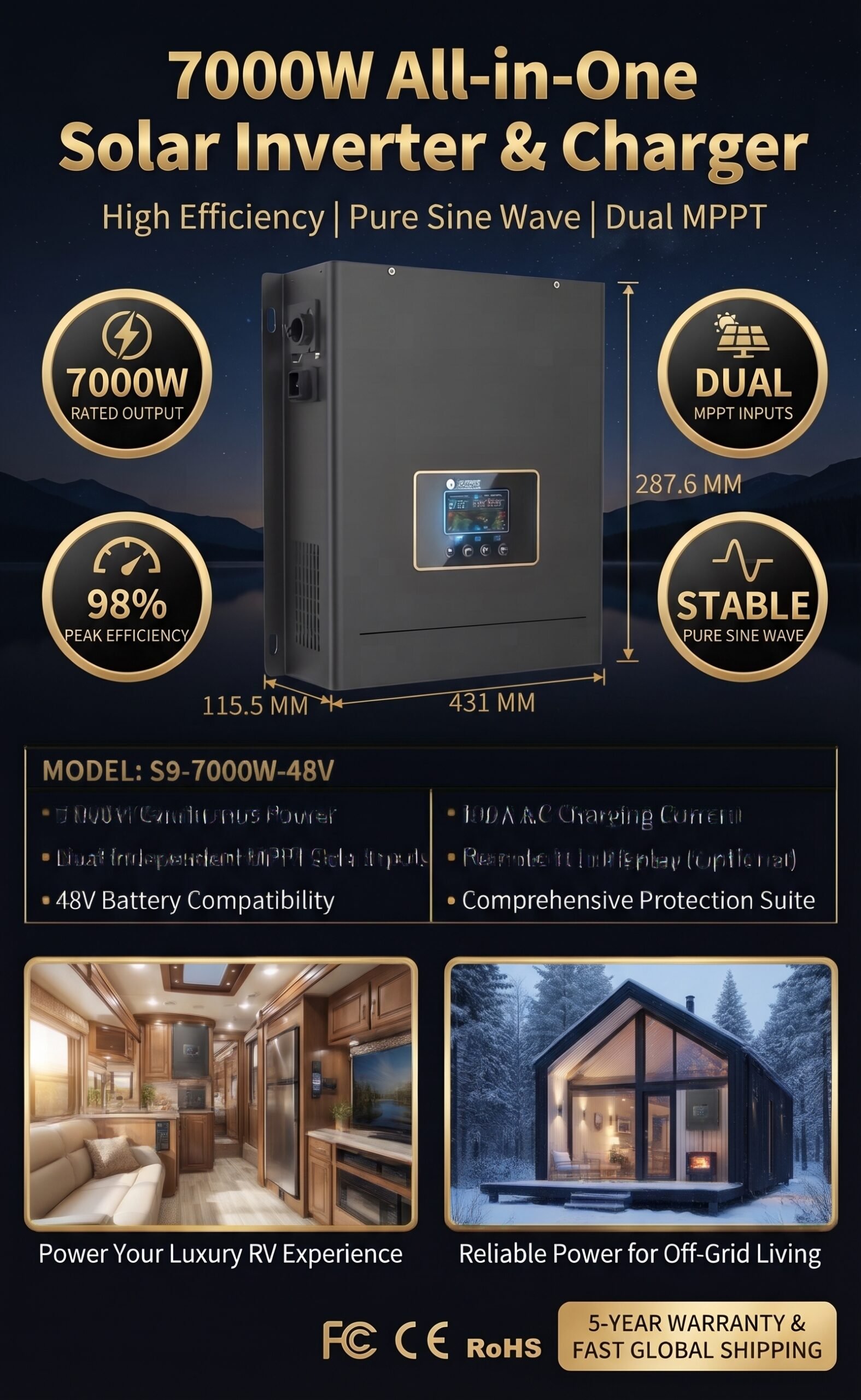

• Dimensions & Export Packaging: Unit: 43.1×28.8×11.6 cm (8.5 kg net) | Master Carton: 53×35×18 cm (9.5 kg gross)
• Included Accessories: 5-meter remote communication cable + external LCD display screen + battery connection cables
• Factory Wholesale Pricing: $480.00 USD (Includes remote display screen and all standard accessories)
• MOQ, Compliance & Warranty: Sample MOQ 1 pc (3–5 day dispatch) | Custom OEM MOQ 100 pcs | CE (EMC & LVD), RoHS, FCC | 3-Year Factory Warranty (View Full Factory Wholesale Price List)

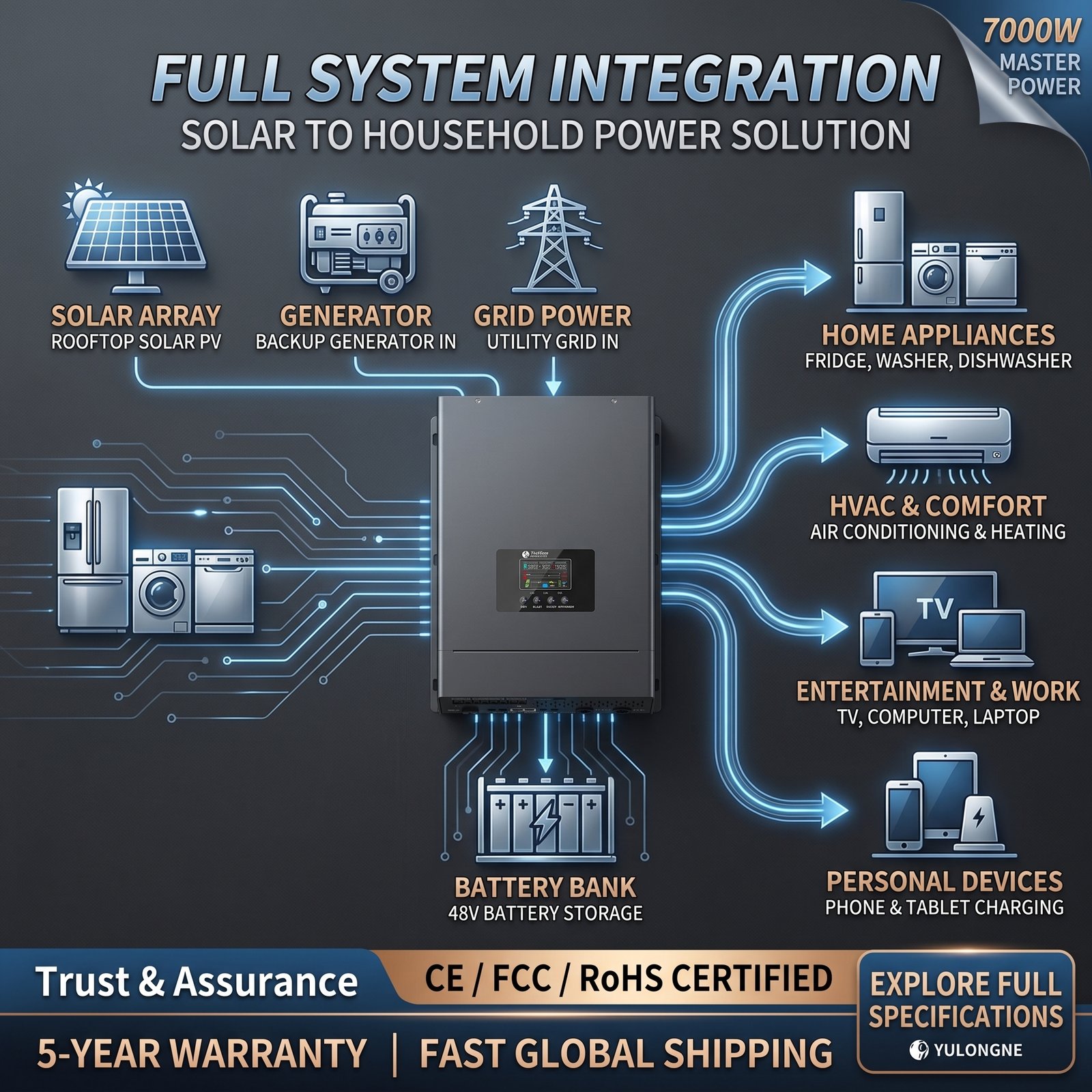

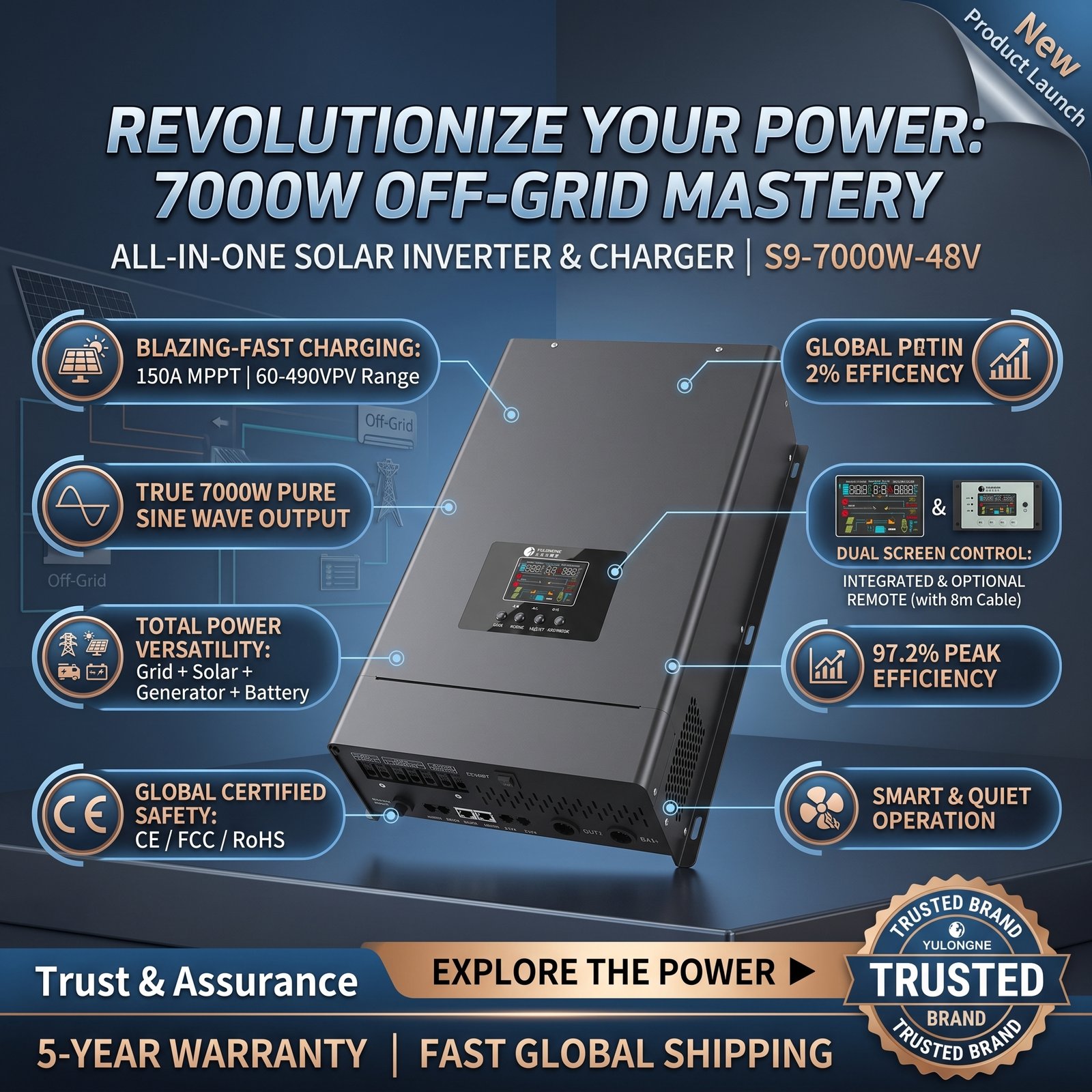

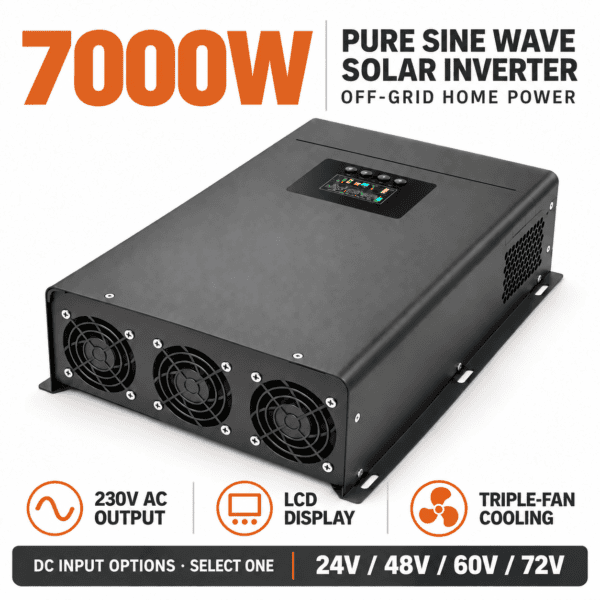

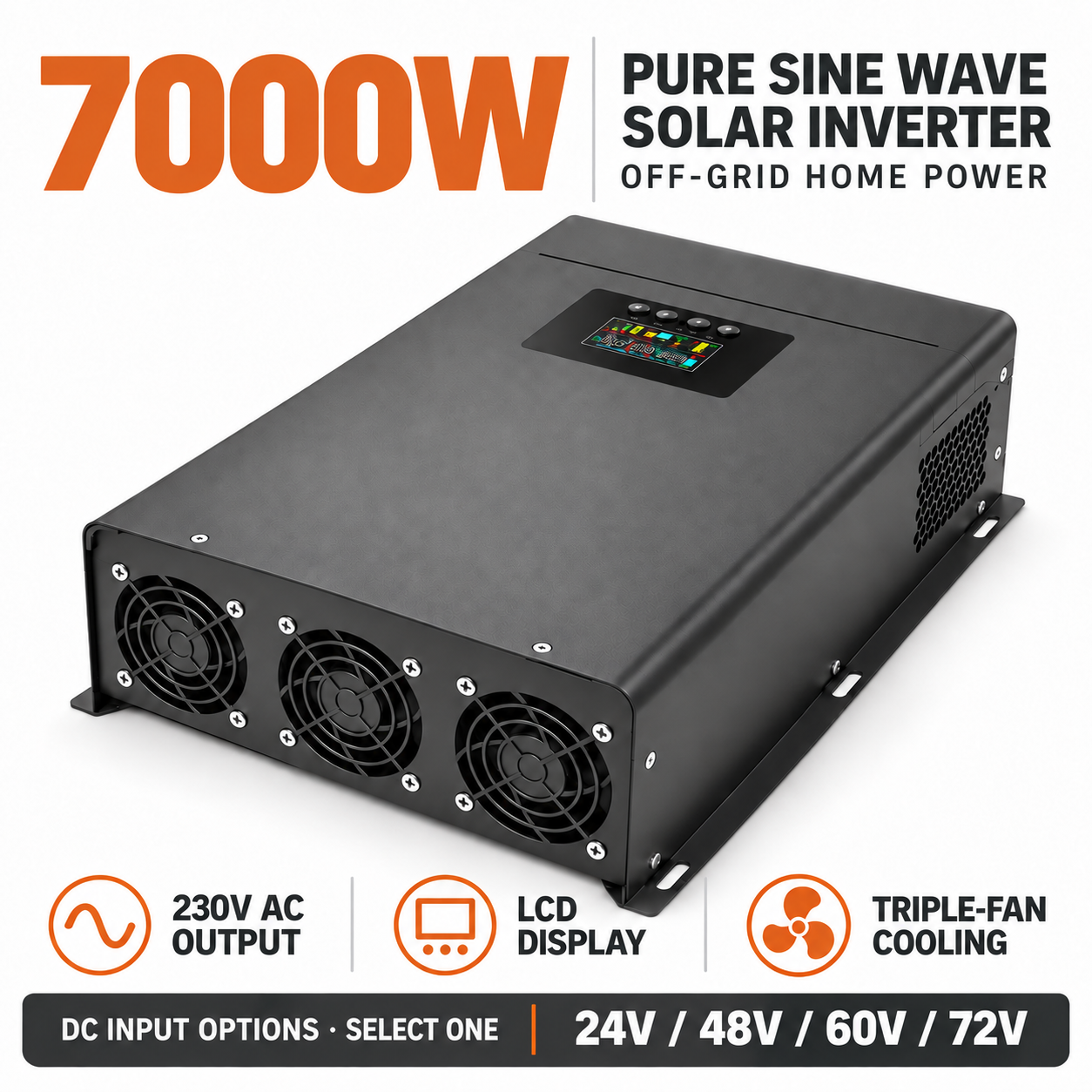

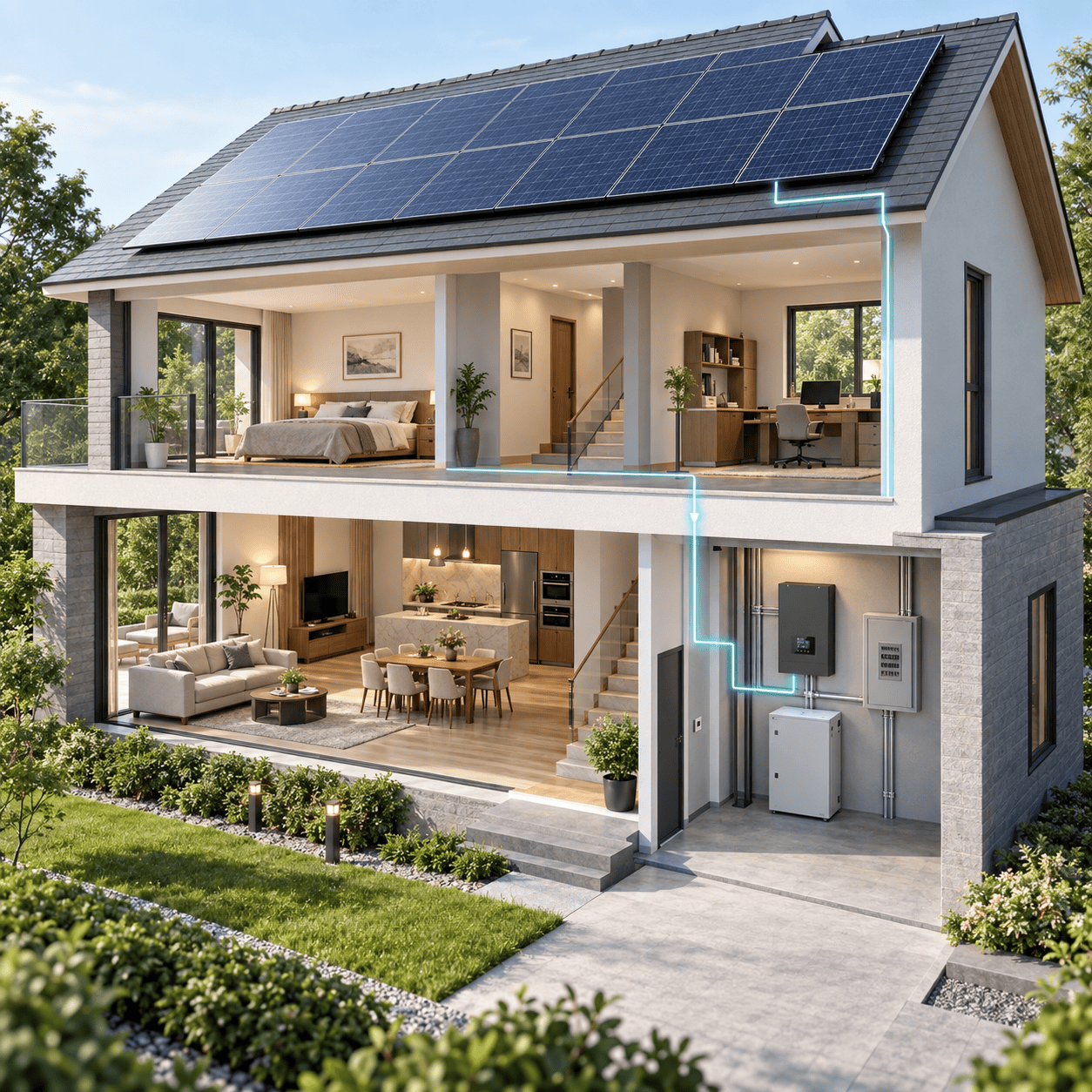

The Fortune Vast 7000W All-in-One Solar PV Hybrid Inverter (manufactured by Shenzhen Qimei Technology Co., Ltd.) is an industrial-grade off-grid power hub engineered for high-surge commercial motors, heavy residential solar systems, and uninterrupted backup power. By integrating a 7kW pure sine wave inverter, a high-voltage MPPT solar charge controller, and an automatic AC transfer switch into a single compact wall-mounted chassis, it eliminates messy external wiring while delivering industry-leading 98% peak conversion efficiency.
Why Solar EPCs and Importers Choose the 7000W Hybrid Series
- Exceptional 98% Peak Efficiency: Advanced transformerless topology cuts internal thermal dissipation by over 30%, ensuring maximum solar harvesting from rooftop PV arrays even under high ambient tropical temperatures.
- Multi-Voltage DC Architecture (24V / 48V / 60V / 72V): Easily pairs with existing 24V/48V commercial battery racks, 60V industrial banks, or 72V electric vehicle battery packs, cutting DC cable amperage and copper losses by up to 60%.
- Sub-10ms UPS Auto-Switchover: Seamlessly transfers between solar PV, stored battery reserves, and the AC utility grid (or backup diesel generator) without resetting sensitive servers, medical clinic monitors, or retail POS systems.

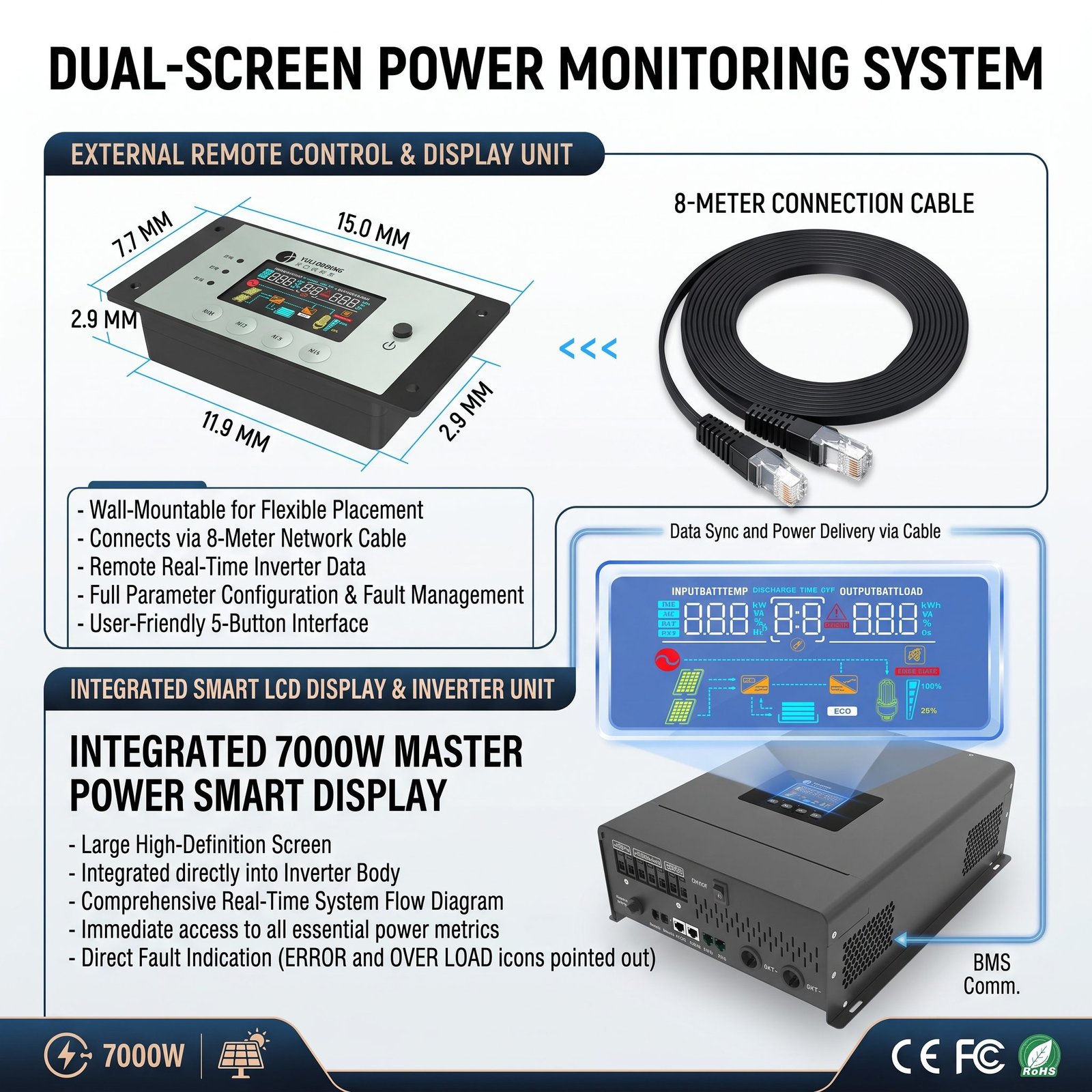

- Dual Remote Display & Wall Control: Every unit includes an external display panel with a 5-meter communication cable, allowing technicians to mount the inverter in an electrical closet while monitoring system metrics from the living room or front office.
Engineered for High-Surge Inductive Loads (Compressors, Cold Rooms & Water Pumps)
Unlike standard modified sine wave units that overheat and trip on motor startup, the 7000W model provides up to 14,000W surge capacity with Total Harmonic Distortion (THD) under 3%. It reliably starts and sustains demanding inductive loads:
| Commercial Equipment Application | Running Wattage | Locked-Rotor Startup Surge | Performance on Fortune Vast 7000W Inverter |
|---|---|---|---|
| 3HP – 4HP Commercial Cold Room Compressor | 2,200W – 3,000W | 7,500W – 10,500W | Smooth soft-start without voltage dip; continuous 24/7 cooling |
| 2HP – 3HP Submersible Borehole Irrigation Pump | 1,500W – 2,200W | 5,500W – 8,800W | Reliable off-grid water pumping for commercial farms and lodges |
| Multiple Inverter Air Conditioners (2–3 Units) | 2,400W – 3,600W | 6,000W – 9,000W | Simultaneous daytime cooling powered directly by solar PV arrays |
| Whole Commercial Workshop / Pharmacy Backup | 3,500W – 5,500W | 8,000W – 12,000W | Full facility lights, refrigeration, computers, and security systems |
Need to compare sizing? Read our engineering guide: 5000W vs 7000W Inverter: Which Is Right for Your Commercial Load? or explore our 3000W–7000W All-in-One Solar Inverter Buying Guide.

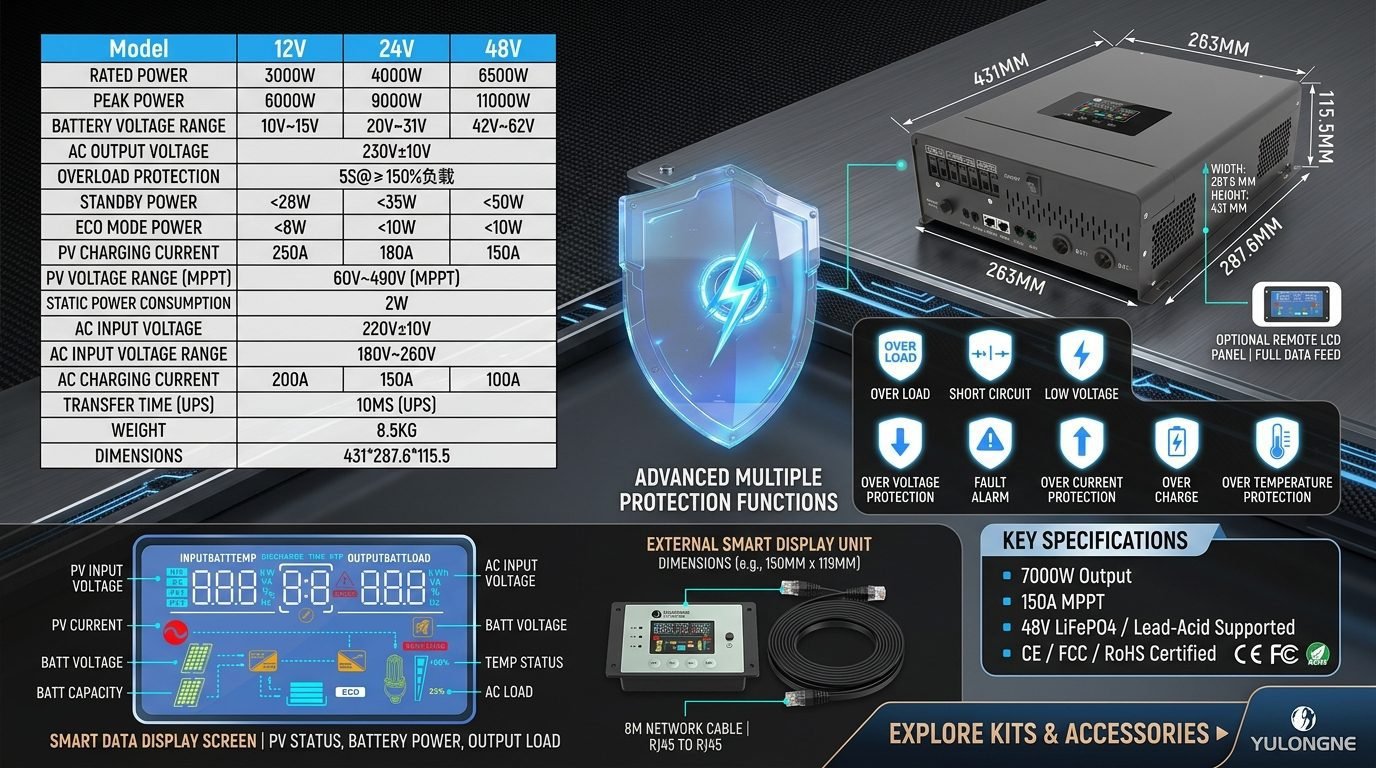

Complete Technical Specifications
| Specification Parameter | PV-INV-7000W Technical Rating |
|---|---|
| Rated Continuous Output Power | 7000 Watts (7.0 kW) |
| Surge Peak Power (2 seconds) | 14,000 Watts (14.0 kW) |
| AC Output Voltage & Frequency | 220V / 230V AC (±2%), 50Hz / 60Hz Auto-sensing |
| Output Waveform | Pure Sine Wave (THD < 3% at linear load) |
| Maximum Conversion Efficiency | Up to 98% |
| DC Battery Bank Input Options | 24V / 48V / 60V / 72V DC (BMS low-voltage protection built-in) |
| Internal Solar Charge Controller | High-efficiency MPPT Solar Tracking Controller |
| Transfer Switch Time | < 10 ms (UPS Class Seamless Transfer) |
| Cooling System | Intelligent dual high-velocity temperature-controlled fans |
| Unit Net Dimensions & Weight | 43.1 × 28.8 × 11.6 cm | Net Weight: 8.5 kg |
| Export Packaging & Gross Weight | Standard Export Master Carton: 53 × 35 × 18 cm | Gross Weight: 9.5 kg |
| Included Accessories | External LCD display screen, 5m network cable, DC terminal battery cables |
Direct Factory Wholesale & Custom OEM Terms
- Factory Wholesale Price: $480.00 USD (Bulk & Sample evaluation unit).
- Fast Dispatch: Samples dispatch within 3–5 business days. Spot bulk inventory ships in 7–10 days with free domestic delivery to your cargo forwarder warehouse in Guangzhou, Shenzhen, or Yiwu.
- Custom OEM / ODM Program: Custom laser-engraved branding, exterior housing colors, and localized packaging available starting from 100 units (explore OEM program).
- 3-Year Factory Warranty: Backed by a comprehensive 3-Year Factory Warranty, including 1-year free replacement or refund for manufacturing defects and 3 years of free engineering replacement components.
- International Certifications: Fully certified under CE (EMC Directive & LVD Safety), RoHS hazardous substance compliance, and FCC commercial standards.
For custom proforma invoices (PI), container LCL/FCL freight quotations, or technical datasheets, contact our Shenzhen engineering export team directly on WhatsApp (+86 156 2759 1474) or email (inquiry@fortunevast.shop).
