Description

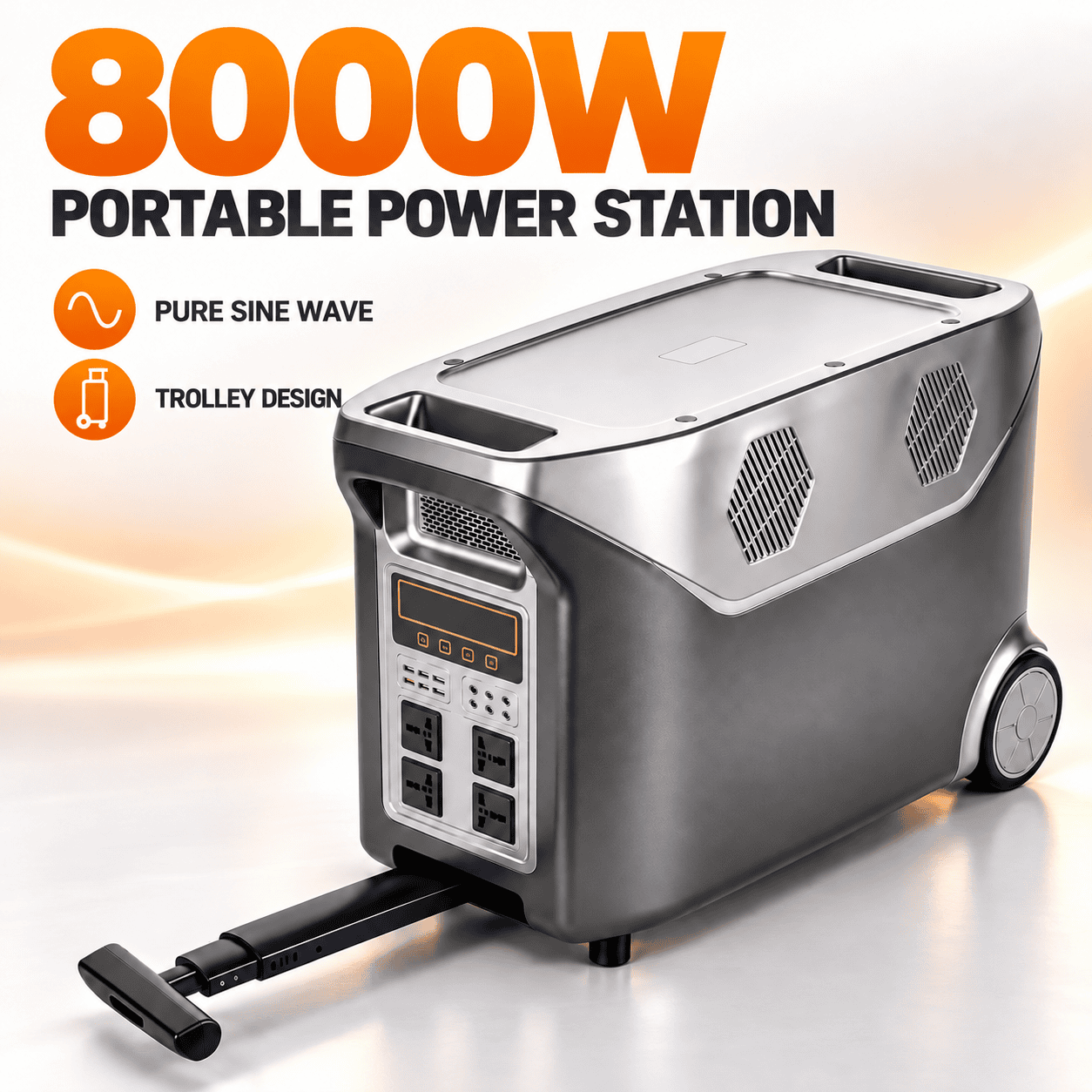

5120Wh Energy Storage in a Wheeled Design
The Fortune Vast MK-8000-A-24V-A is a 5120Wh portable power station built around a 25.6V lithium iron phosphate battery system. It combines energy storage, AC and DC outputs, and MPPT solar charging functionality in one wheeled enclosure.
With 5.12kWh of nominal battery energy, this model gives buyers a clear capacity reference when comparing energy storage options for mobile work, outdoor power planning and backup-power applications. Equipment compatibility depends on the unit’s confirmed output ratings, not battery capacity alone.
Multiple Output Connections
The MK-8000-A-24V-A provides 220V AC, 5V USB and 12V DC outputs for compatible equipment. Its connection options include:
- Four AC outlets.
- Five USB ports.
- One USB-C port.
- Six DC 5521 ports.
- One wireless charging area.
A built-in 10W LED light provides additional illumination near the unit.
Check each device’s voltage, running power and startup requirements before connecting it. Individual port limits and the total simultaneous output limit must both be observed. USB-C charging protocols and supported power should be confirmed for the ordered configuration.
Integrated MPPT Solar Charging
The unit includes a 40A MPPT solar charge controller and is supplied with a 29.2V 20A charger.
Before selecting solar panels, confirm the supported PV input voltage range, maximum input power, current limit and connector requirements. The controller’s 40A rating alone does not determine which panel arrangement is compatible.
Solar panels and any additional charging accessories should be clearly identified in the quotation and packing list.
Wheeled Transport and Product Dimensions
Integrated wheels and a pull handle help users reposition the unit without carrying its full weight. At approximately 42kg net weight, it is suited to planned wheeled transport rather than frequent hand carrying.
Check the product dimensions, access route and lifting arrangements when planning installation, storage or delivery.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Fortune Vast |
| Model | MK-8000-A-24V-A |
| Nominal battery energy | 5120Wh / 5.12kWh |
| Battery chemistry | Lithium iron phosphate — LiFePO4 |
| Nominal battery voltage | 25.6V |
| AC output voltage | 220V |
| USB output voltage | 5V |
| DC output voltage | 12V |
| AC outlets | 4 |
| USB ports | 5 |
| USB-C ports | 1 |
| DC 5521 ports | 6 |
| Wireless charging | 1 charging area |
| Solar charge controller | 40A MPPT |
| Built-in LED light | 10W |
| Supplied charger | 29.2V 20A |
| Product dimensions | 68 × 28 × 43.8cm |
| Net weight | Approximately 42kg |
| Carton dimensions | 76.8 × 36.5 × 49cm |
| Packing quantity | 1 unit per carton |
Choosing a Configuration for Your Equipment
Battery energy and output power serve different purposes. The 5120Wh rating describes nominal stored energy; it does not specify the maximum connected load or guarantee a particular runtime.
Actual runtime depends on usable battery energy, conversion losses, operating conditions and the equipment connected. For welding equipment, motors, compressors or other demanding loads, request confirmation of compatibility and operating limits before ordering.
Wholesale Enquiries
To request a quotation, provide the model number, order quantity, delivery country and intended equipment. Include your required AC frequency, socket arrangement and charging accessories so that the proposed configuration can be checked before purchase.
Request the confirmed specification sheet, package contents and model-specific compliance documents for your selected configuration.
